Custom Automotive Wire Harness Manufacturer
We specialize in custom automotive wire harness solutions, tailored to meet the unique needs of your vehicles. We design and manufacture high-quality, durable harnesses for electric vehicles (EVs), autonomous cars, and traditional passenger vehicles. Our expert team ensures reliable performance, safety, and seamless integration with precision-engineered solutions.
Custom automotive wiring harness solutions
OUKETECH provides customized automotive wiring harness solutions for a wide range of vehicles, covering various years, makes, and models. Whether you’re restoring a classic car or building a unique custom vehicle, we can design and manufacture a precise wiring harness system perfectly tailored to your needs.
We meticulously craft each wiring harness using high-quality materials, ensuring reliable and safe operation under all driving conditions. Our experienced team is readily available to provide technical support and answer your questions, ensuring you receive the most suitable custom wiring harness solution.
Characteristics of automotive wiring harnesses
OUKETECH, as a professional automotive wiring harness manufacturer, provides both standard and customized transportation wiring harnesses. These harnesses are composed of high-security wires, terminals, and connectors, and are primarily used to transmit power and information within vehicles. They function like the circulatory and nervous systems of the human body, connecting different vehicle components to ensure the efficient operation of the electrical system.
Our wiring harness system not only improves cable management efficiency but also boasts excellent manufacturing feasibility, ensuring that various complex circuit designs can be successfully implemented.
The following are some characteristics of automotive wiring harnesses manufactured by OUKETECH
High-Quality Materials: We strictly select premium materials to ensure the durability and stability of the wire harnesses.
Lightweight Design: Combining lightweight and manufacturing convenience, ensuring the harness performs optimally without affecting installation within the vehicle.
High-Temperature Resistance: Our wire harnesses are designed to function reliably in environments up to 200°C, ensuring performance in extreme temperature conditions.
Durability: Manufactured with the highest quality materials available in the market, making the wire harnesses durable enough to withstand long-term use.
Easy Installation: Designed with ease of installation in mind, ensuring that users can complete the installation quickly and conveniently.
Impact and Vibration Resistance: Especially suitable for transportation equipment, capable of withstanding strong impacts and vibrations, ensuring stable operation.
Custom Design: Offering personalized designs tailored to customer needs, ensuring each project meets specific functional requirements.
Multiple Connection Options: We provide various connectors, crimping, and splicing options, ensuring the best match for the application requirements.
Adaptability for Low and High Voltage Applications: Our wire harnesses are designed to meet the low and high voltage requirements of different vehicles, making them widely applicable across various transportation vehicles.
Automotive wiring harnesses are classified according to their application location.

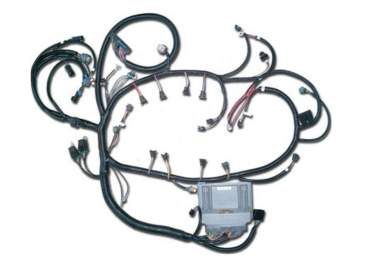

Engine wiring harness
Engine Wiring Harness connects engine components, transmitting electrical signals to ensure proper engine system operation.

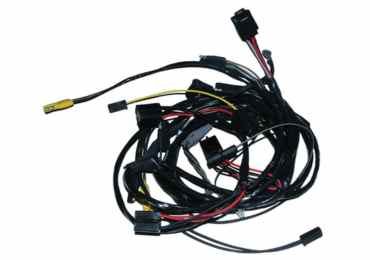

Lighting System Wiring Harness
We provide excellent lighting solutions and ensure the stable operation of lighting systems.

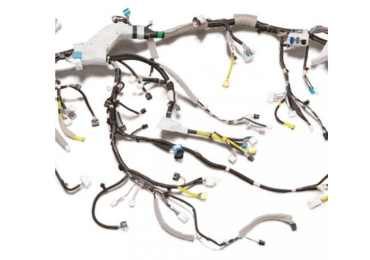

Safety System Wiring Harness
Safety System Wiring Harness connects automotive safety systems, such as airbags, electronic stability control (ESC), and collision sensors, ensuring the proper functioning of safety features.

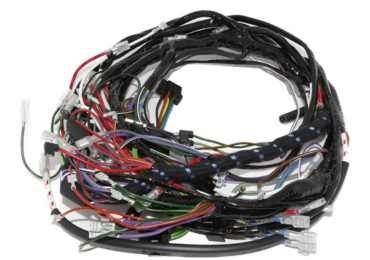

Dashboard Wire Harness
Designed for dashboards, offering reliable electrical connections and precise functionality.

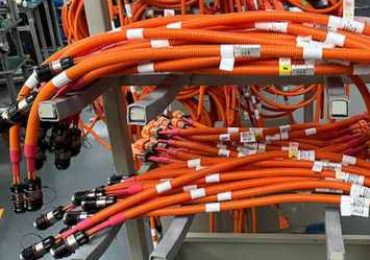

High Voltage wire harness
High-voltage system-specific harnesses ensuring safe and efficient operation of equipment.

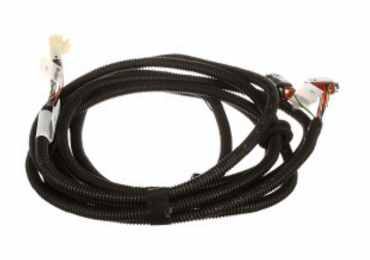

GPS wiring harnesses
High-precision GPS wiring harnesses ensuring accurate and reliable positioning systems.

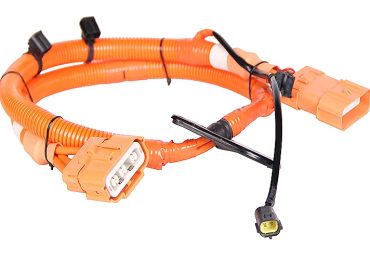

Battery Wiring Harness
Battery Wiring Harness connects the battery to the vehicle’s electrical system, ensuring proper charging and discharging, supporting high power transmission with high safety and durability.
Body Wiring Harness
Body Wiring Harness connects the electrical systems of body components, such as windows, seat adjustments, and lights, ensuring comfort and functionality.
Application Areas
Our automotive wiring harnesses are widely used in…
Truck wire harness
Robust wiring harnesses designed for trucks, meeting various complex electrical demands.
Trailer wiring harness
Optimized trailer wiring harnesses ensuring safe and stable electrical connections.
Tractor wire harness
Custom tractor wiring harnesses to support reliable operation of agricultural equipment.
Construction vehicle wiring harness
Ensuring efficient and safe operation of construction vehicle electrical systems, designed to withstand harsh working conditions.
Electric vehicle wiring harnesses
Electric vehicle wiring harnesses connect the battery, motor, and charging system, carrying high voltage and signals. They require high temperature resistance, corrosion resistance, and lightweight design to ensure efficient and safe operation.
Hybrid vehicle wiring harnesses
Hybrid vehicle wiring harnesses connect the internal combustion engine and electric motor systems, supporting both high and low voltage electrical systems, ensuring seamless power switching and efficient collaboration.
Optimize Your Supply Chain with Tailored Automotive Wiring Harness Solutions
Your Reliable Automotive Wiring Harness Partner for All Manufacturing Needs – Click to Inquire!
Details to pay attention to when customizing automotive wiring harnesses
When customizing automotive wiring harnesses, several key details require special attention to ensure the quality, compatibility, and safety of the harness. Here are some common considerations:
1、Define Electrical Requirements
- Voltage and Current: Define the voltage and current levels the wiring harness needs to support, ensuring it can handle the vehicle’s electrical system demands.
Power Requirements: Consider the power needs of devices (such as lighting, audio systems, etc.) and ensure the harness can handle high-power devices.
2、Choose Suitable Materials
- Wire Materials: Copper or copper alloys are typically used for wire materials. Choosing high-quality copper wires improves electrical performance and reduces heat loss
Insulation Materials: Choose suitable insulation materials based on environmental conditions (such as high temperatures, moisture, etc.). Common materials include PVC, polyolefin, and rubber.
Connectors and Terminals: Choose high-temperature and corrosion-resistant connectors and terminals to ensure stable long-term use.
3、Size and Space Matching
Size Requirements: Ensure the size and shape of the wiring harness fit the installation space, avoiding cramped spaces or overly long wires that affect installation efficiency and vehicle aesthetics.
Space Adaptability: Consider the placement and layout of various components inside the vehicle to ensure the harness fits well and is easy to install and maintain.
4、Protection and Durability
- Vibration Resistance: Vehicles experience significant vibrations during operation, so the wiring harness must be vibration-resistant to prevent damage from frequent shaking.
Waterproof and Corrosion-Resistant: Especially for electrical connection components, they must be waterproof and corrosion-resistant to withstand various driving conditions and prevent short circuits and corrosion.
Temperature Resistance: Considering that vehicles operate in both high and low temperature environments, ensure that the materials and design of the wiring harness can withstand extreme temperatures.
5、Compliance with Industry Standards and Certifications
- Quality Certification: Ensure that the wire harness materials and components used comply with relevant industry standards and must be IATF 16949 and ISO 9001 certified.
- Safety Standards: Comply with automotive industry safety standards to ensure that the wiring harness does not become a safety hazard in the event of a collision or other accidents.
6、Comply with Environmental Standards
Non-Toxic and Harmless Materials: Use environmentally friendly materials, such as halogen-free materials or ROHS-compliant plastics, to reduce environmental impact.
Recyclability: Consider the recyclability of the harness during design, reducing waste and meeting modern environmental requirements.
7、Durability Testing
- Thermal Cycling Tests: Perform thermal cycling tests on the wiring harness to ensure it functions properly in high, low, and fluctuating temperatures.
Electrical Testing: Conduct electrical performance tests to ensure the harness’s conductivity and electrical stability, preventing failures due to poor contact.
8、Customization Requirements
Special Functionality: If specific communication systems (such as CAN bus) are needed, or if electromagnetic interference protection is required, these features should be considered in the design.
Harness Labeling: Clearly label each cable to avoid installation errors and make maintenance easier.
9、Production and Delivery Cycle
Production Cycle: Ensure the production cycle aligns with delivery times to avoid delays affecting vehicle production or subsequent installation.
Mass Production and Customization: Adjust production methods based on customer requirements to ensure efficient production and meet customization needs.
10、Cost Control
Reasonable Budget: Optimize the design and production process of the wiring harness while ensuring quality and safety to reduce production costs.
Long-Term Use Costs: Choose durable materials and processes to reduce future maintenance and replacement costs
All our wiring harnesses undergo rigorous durability and electrical performance testing before leaving the factory, ensuring their reliability in demanding environments. Leveraging our accumulated expertise and a design philosophy focused on ease of manufacturing, we provide customers with efficient and reliable solutions that simplify the electrical system integration process in transportation equipment.
How can you tell if a car's wiring harness is aged or damaged?
1、Electrical failures or device malfunctions
If certain electrical devices in the vehicle (such as lights, audio systems, or dashboard displays) frequently malfunction, it could indicate an issue with the wiring harness. An aging or damaged harness may cause unstable power supply, affecting the normal operation of devices.
2、Wear or visual inspection
If the outer rubber or plastic layer of the wiring harness shows cracks, damage, or discoloration, or if there are obvious signs of wear or burn marks, the harness may be aging or damaged. These signs are typically caused by prolonged exposure to high temperatures, moisture, or chemicals.
3、Short circuits or overheating of wires
If the wiring experiences short circuits or overheating, it may indicate that the insulation of the harness is damaged, causing current leakage or poor wire contact. Overheating can also result in the harness feeling hot or emitting a burning smell.
4、Strange smells or smoke
If you notice a burnt smell from the wires inside the car or see smoke coming from the harness area, this may indicate a short circuit or insulation damage inside the harness, causing overheating and current leakage.
5、Unstable current transmission
If the vehicle’s electrical system is unstable or there are intermittent power supply issues, it could be a sign of aging wiring harnesses. Loose wire connections or aging insulation may cause poor contact.
6、Using diagnostic tools
Use a multimeter or other professional diagnostic tools to check the voltage and current transmission of the wiring harness. If the measured results deviate significantly from standard values, it may indicate that the harness is damaged or aging.
7、Checking fault codes
Modern vehicles typically have an On-Board Diagnostics (OBD) system. If fault codes related to the electrical system appear, it could point to an issue with the wiring harness. Using an OBD diagnostic tool can help read the fault codes and detect potential wiring harness problems.
8、Issues with the vehicle’s battery or charging system
If the vehicle’s battery power consumption is abnormal or the charging system isn’t functioning properly, the wiring connections may be faulty. In particular, damaged connections in the high-voltage battery or charging system may affect charging efficiency.
Do you offer sample production before mass orders?
Yes. We support prototyping for testing and fitment before scaling to mass production.
Do you accept small quantity orders?
Yes, we do, but we are a B2B manufacturer and we do not provide pricing for hobbyists or individual car owners.
What is your typical lead time?
Simple wiring harnesses: 3 days; complex wiring: 1-4 weeks.
Can ouketech manufacture an auto wire harness without a product drawing or design specifications?
Our team has the expertise to recreate automotive wiring harnesses even without the original design specifications. Using advanced reverse engineering techniques, we can carefully dismantle existing wire harnesses to gather all necessary details, including dimensions, components, and other essential information
