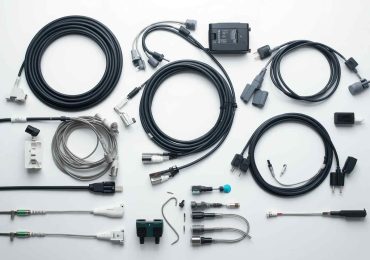

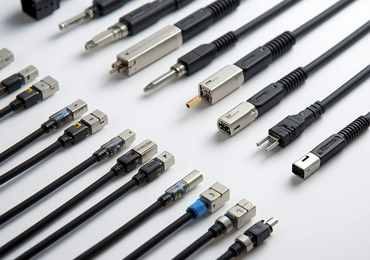

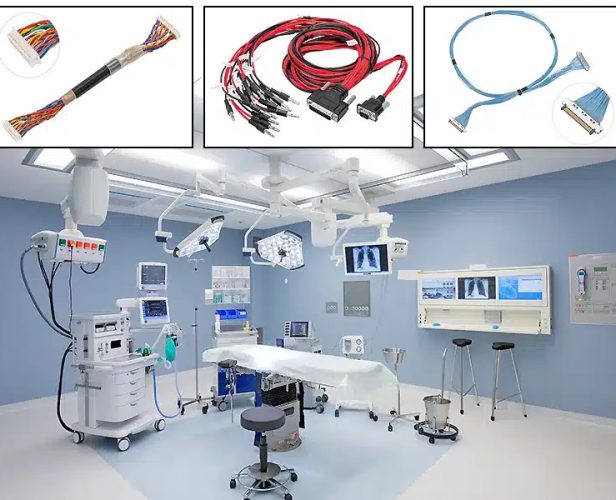

Custom Medical Wire Harnesses
& Cable Assemblies
OUKETECH—Precision-engineered specifically for critical medical wire harness applications. Compliant with the most rigorous ISO, FDA, and UL standards, ensuring both patient safety and equipment reliability.
What is a Medical Wire Harness?
A medical wire harness or cable assembly is a specialized collection of wires, cables, and connectors designed to reliably transmit electrical power and signals in medical devices and equipment.
Think of it as the nervous system of your medical device — grouping dozens or even hundreds of wires into a single structured unit to ensure efficient signal and power flow. This precise design reduces loose connections and human wiring errors, which is essential when a patient’s life is at stake.
Medical wire harness assemblies are specifically designed to meet rigorous safety and regulatory standards, delivering high precision, durability, and performance within sensitive medical environments to ensure the reliability and safety of life-saving equipment.
The Advantages of Ouketech's Custom Medical Wire Harnesses
- 15+ years of OEM/ODM experience serving medical device OEMs with custom medical wire harnesses
- ISO 13485 certified facility, UL recognized, IPC/WHMA-A-620 compliant
- 100% electrical testing (continuity, insulation resistance, hi-pot) for every custom medical wire harness
- Advanced automated production equipment ensures consistent quality and precision for custom medical wire harnesses
- Scalable capacity from prototype to high-volume global production of custom medical wire harnesses
- 24-hour technical consultation response time to quickly resolve any issues regarding your custom medical cable assemblies.
Our Custom Medical Wire Harness Services
Ouketech’s medical wire harnesses are designed to meet the highest standards required by medical equipment, ensuring exceptional quality and reliability:
01
Strict Compliance and Safety Standards
02
Strict Compliance and Safety Standards
Our medical wire harnesses are manufactured according to the ISO 13485 quality management system and comply with IEC 60601, UL 60601-1, and FDA 21 CFR Part 820 regulations. All components are made from biocompatible, non-toxic materials verified to meet FDA and CE standards, ensuring safety and reliability.
03
Durability in Harsh Environments
Medical equipment often undergoes stringent cleaning and disinfection procedures. Ouketech’s medical wire harnesses are made from heat-resistant, chemically resistant materials such as silicone and PTFE, designed to withstand multiple autoclave cycles. Special coatings and stress-relieving devices effectively prevent cracks and short circuits, ensuring long-term durability.
04
Compact and Organized Design
By bundling multiple wires into a single wire harness, Ouketech’s medical wire harnesses not only save space inside the equipment but also reduce clutter, making assembly and maintenance easier. A multi-core wire harness replaces dozens of loose cables, making the device more efficient and organized.
05
Electromagnetic Shielding
Medical devices are highly susceptible to electrical noise. Ouketech’s medical wire harnesses are equipped with EMI/EMC shielding (such as braided or foil) to maintain clean signals and prevent interference between different components, ensuring smooth and interference-free operation.
The Wide Application of Ouketech Medical Wire Harnesses
Ouketech’s medical wire harnesses provide reliable power and signal transmission for various medical devices, ensuring efficient operation and safeguarding patient health. Our custom wire harnesses meet the specialized needs of the medical industry, supporting imaging equipment, surgical treatments, laboratory analysis, and more, driving innovation in medical technology.
Imaging Systems wiring harness
(MRI, CT, X-ray, ultrasound, endoscopes) | Use specialized harnesses (typically with coaxial cables) to transmit high-frequency data and power with minimal loss. MRI/CT scanners use protected assemblies for accurate image signals; ultrasound devices use flexible harnesses for probe connections.

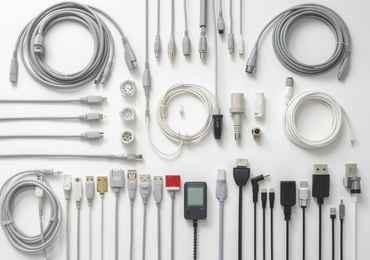

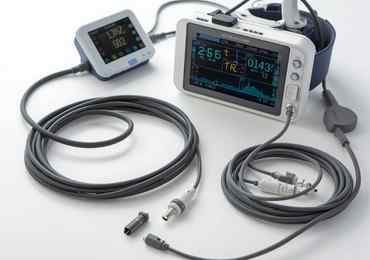

Patient Monitoring wiring harness
(ECG/EKG, EEG, Vital Sign Monitors, Telemetry Devices) | Deliver bioelectrical impulses from electrodes and sensors to monitoring equipment. 10-lead cable assemblies transmit heart signals precisely; multi-sensor harnesses keep ICU monitors running continuously. Enable healthcare professionals to monitor patient health effectively and respond promptly to critical situations

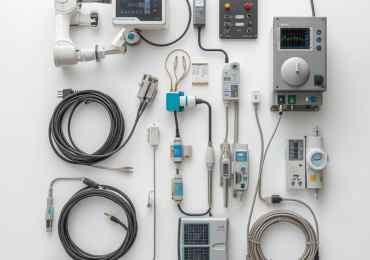

Surgical & Therapeutic Devices wiring harness
(Robotic surgery arms, electrosurgical generators, ventilators, infusion pumps, dialysis machines, cauterizing devices) | Custom harnesses control and power surgical and therapeutic equipment. Built to withstand continuous use and repeated sterilization cycles, ensuring power distribution and coordination of movement.
Laboratory & Diagnostic Instruments wiring harness
(Automated analyzers, blood analyzers, point-of-care test devices, glucose meters, lab robots) | Connect sensors, motors, and controllers on automated lab equipment, ensuring correct signal transmission for accurate diagnostic results.
Wearable & Home-Health Devices wiring harness
(Wearable monitors, home therapy equipment) | Feature flexible, lightweight designs that balance durability with patient comfort, often using silicone jackets and snap-on connectors.
Healthcare IT Systems wiring harness
(Electronic Medical Records, Medical Imaging Networks, Telemedicine Platforms) | Enhance connectivity and data management in healthcare IT infrastructure. Support EMR systems, medical imaging networks, telemedicine platforms, and patient data security measures, facilitating efficient healthcare delivery and information management
Our Quality Assurance Process
From sourcing and procurement of raw materials to final testing and delivery, we ensure the highest quality standards for custom medical wire harnesses at every stage
All raw materials are verified for medical-grade certification, biocompatibility, and compliance with your specifications.
Multiple inspection checkpoints during production to ensure quality for custom medical wire harnesses.
Every custom medical wire harness undergoes rigorous quality control testing, including:
- Electrical Testing (continuity, insulation resistance, hi-pot)
- Mechanical Testing (pull force, flex fatigue)
- Visual Inspection (against engineering drawings)
This extensive process ensures that every medical cable assembly we produce meets the strict safety standards required for use in critical medical settings.
This extensive process ensures that every custom medical wire harness we produce meets the strict safety standards required for use in critical medical environments.
Our Capabilities and Services
We deliver end-to-end custom medical wire harness services covering design, prototyping, cleanroom manufacturing, testing, integration and program management. With strict quality control, full traceability and flexible production capacity, we support OEM/ODM/EMS partners throughout NPI, low-volume development and high-volume production to meet rigorous medical industry standards.
01
Custom Design & Engineering
02
Prototype & Sample Development
Rapid prototype turnaround to support your custom medical wire harness product development cycle.
03

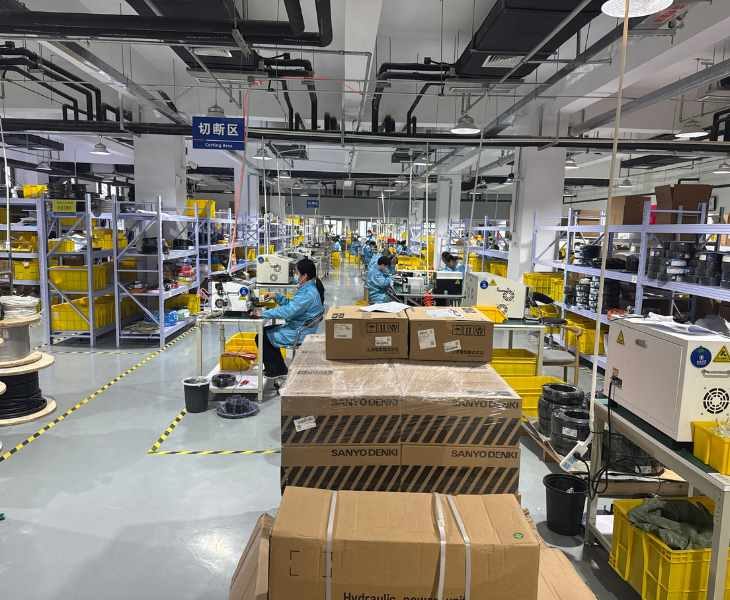

Cleanroom Manufacturing
Controlled cleanroom production environment to meet medical industry cleanliness requirements for custom medical wire harnesses.
04
Full Contract Manufacturing
From low-volume prototypes to high-volume production, we handle all your custom medical wire harness manufacturing needs
05
Full Traceability
06
Comprehensive Testing
07
Supply Chain & Program Management
08
Box Build & System Integration
09
OEM/ODM/EMS Support
10
New Product Introduction Support
11
Offshore Manufacturing Options
12
Dedicated Work Cells
13
End-to-End Interconnect Solutions
14
End-to-End Partnership from Ideation to Market Ramp-Up
Get in Touch for Custom Medical Wire Harness Solutions
Ouketech is dedicated to providing customized medical cable harness solutions, meticulously tailored to meet the rigorous demands of the healthcare and life sciences sectors. From patient monitoring equipment and medical imaging systems to surgical instruments and diagnostic devices, our products guarantee exceptional precision and reliability, ensuring full compliance with all relevant industry standards.
If you require further information or wish to request a quotation, please contact us via the online form on this page or using the contact details provided below. Our expert team will respond to your inquiry within 12 hours, offering personalized solutions and professional technical support.
📧 邮箱：sales@ouketech.com
📞 电话：(+86) 156-335-33701
By choosing Ouketech as your long-term partner, you gain access to trustworthy, high-quality medical cable harness solutions. We have earned the deep recognition and trust of numerous medical device OEMs worldwide.
Frequently Asked Questions (FAQs)
What is the difference between custom medical wire harnesses and standard cables?
Unlike standard cables, custom medical wire harnesses are typically manufactured in a controlled cleanroom environment and undergo rigorous defect inspection. They utilize biocompatible materials that meet medical-grade standards and must satisfy stricter requirements to ensure they are sterilizable, non-toxic, and capable of reliable operation under extreme conditions.
What types of testing do custom medical wire harnesses undergo?
All custom medical wire harnesses undergo rigorous electrical and mechanical testing, including continuity checks, insulation resistance (high-voltage) testing, tensile and flex-fatigue testing, and—when necessary—crimp X-ray inspection. We perform 100% electrical testing, as well as environmental testing (temperature cycling, humidity, sterilization), to ensure the long-term durability of the custom medical wire harnesses.
Why are these custom medical wire harnesses so critical in the medical industry?
They directly impact patient safety. Wire failures can lead to misdiagnosis or equipment malfunction. A single broken wire in a surgical robot or an ICU monitor could result in the complete paralysis of the entire system. Through redundant design, high-quality insulation, and strict quality control, custom medical wire harnesses mitigate these risks, ensuring the accurate transmission of signals during critical moments.
Can custom medical wire harnesses be tailored to any specific device?
Yes, we customize each medical wire harness according to your specific device requirements—specifying factors such as the number of conductors, connector types, and more—to ensure a perfect match for your equipment’s needs.
How do I get a quote for a custom medical wiring harness?
Simply submit your specs, drawing, or requirements, and we will provide a detailed, free quote.
What medical devices do your wire harnesses support?
We manufacture wire harnesses for a wide range of medical equipment, diagnostic imaging systems, infusion pumps, surgical tools, and mobility aids
