Overmolded Cable Assembly | Custom Durable Connectivity Solutions by Ouketech
Ouketech specializes in custom overmolded cable assemblies, delivering durable and reliable connectivity solutions for automotive, medical, industrial, and electronic applications.

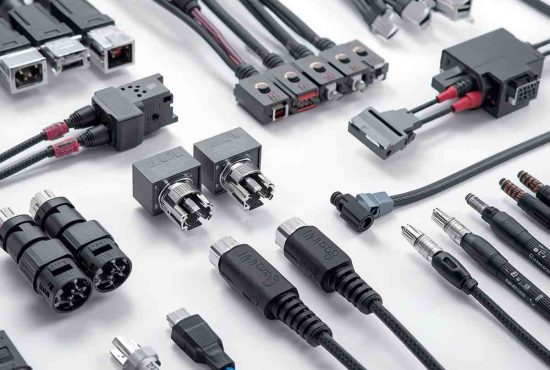

What Are Overmolded Cable Assemblies?
Overmolded cable assemblies are integrated connectivity solutions where the junction between cable conductors and connectors is fully encapsulated in a molten polymer material that cools to form a single, seamless protective housing. Unlike traditional cable designs that rely on separate heat-shrink tubing, backshells, or clamps for protection, overmolding creates a permanent bond between the cable and connector that eliminates points of failure. This construction delivers superior resistance to environmental stress, mechanical damage, and electrical interference, making overmolded cables the preferred choice for critical applications where reliability is non-negotiable.
At Ouketech, we engineer every overmolded cable assembly to solve specific customer challenges, using material science expertise and precision manufacturing to deliver solutions that outperform conventional designs by 300% or more in harsh operating environments. Our overmolding process supports a wide range of custom configurations, from simple single-connector power cables to complex multi-circuit hybrid assemblies carrying power, data, and signal simultaneously.
Core Advantages of Ouketech Overmolded Cable Assemblies
Our overmolded cable solutions combine 18+ years of engineering innovation with rigorous quality control to deliver tangible performance and cost benefits for our clients.
01
Unmatched Durability for Extreme Operating Conditions
02
Integrated Strain Relief and Mechanical Protection
The transition point between cable and connector is the most common failure point in traditional cable assemblies. Ouketech’s overmolding design incorporates built-in strain relief that absorbs shock, bending, and pulling forces, preventing damage to internal conductors even under repeated mechanical stress. This integrated design eliminates the need for separate clamping components, reducing overall assembly size and weight by up to 30% compared to conventional solutions, making our cables ideal for space-constrained applications in aerospace, automotive, and portable electronics.
03
Superior Electrical Performance and Signal Integrity
We design our overmolded cable assemblies to maintain consistent electrical performance even in the most challenging operating environments. Optional EMI/RFI shielding delivers 60dB+ crosstalk suppression and insertion loss below 0.1dB per meter, ensuring stable signal transmission for high-speed data, sensor, and medical imaging applications. Every assembly undergoes 100% continuity, insulation resistance, and hi-pot testing before shipping, with zero defects guaranteed for all production runs. For high-voltage applications, we offer specialized insulation materials and shielding configurations that prevent arcing and ensure compliance with global safety standards.
04
Complete Customization for Exact Application Requirements
As a leading custom overmolded cables provider, we offer full control over every aspect of your cable design to match your specific needs. Our engineering team works directly with you to select the optimal materials (PVC, TPE, LSZH, medical-grade compounds, food-safe polymers), connector types (circular, rectangular, modular, PCB-mount), shielding options, and cable gauges. We can incorporate custom color coding, part numbers, or company logos directly into the overmold to simplify installation and maintenance for your field teams. For specialized applications, we offer low-smoke zero-halogen materials for public transport and building installations, as well as radiation-resistant compounds for aerospace and nuclear applications.
05
Cost-Effective Performance Over the Product Lifecycle

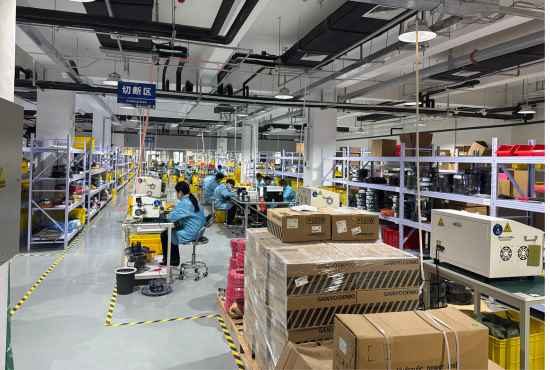

Precision Manufacturing Process and Quality Assurance
Ouketech’s state-of-the-art manufacturing facilities combine advanced production technology with rigorous quality control to deliver consistent, high-quality overmolded cable assemblies at any scale.
Advanced Overmolding Production Technology
Our manufacturing facilities feature 12 high-precision injection molding machines with closed-loop temperature and pressure control, ensuring consistent material flow and void-free encapsulation for every assembly. We use precision-machined aluminum and steel molds, with in-house tooling capabilities that allow us to create custom mold designs in as little as 7 days for new projects. Automated crimping and termination stations ensure consistent connection quality, with force monitoring systems that detect and reject any crimps outside specified tolerance ranges.
Industry-Recognized Certifications and Compliance
Ouketech maintains globally recognized quality management certifications, including IATF 16949 for automotive applications, ISO 13485 for medical devices, and ISO 9001 for general manufacturing. All our overmolded cable assemblies comply with RoHS, REACH, and Conflict Minerals regulations, with full material traceability available for every production run. We can also provide documentation to support UL, CSA, CE, and FDA regulatory requirements for your specific market, reducing your compliance burden and accelerating time-to-market for your products.
Comprehensive Testing and Validation Protocols
Every overmolded cable assembly we produce undergoes a multi-stage testing process to ensure performance and reliability. In addition to 100% electrical testing, we perform environmental stress testing including temperature cycling, humidity exposure, and vibration testing on sample batches from each production run. For custom designs, we offer accelerated life testing that simulates your specific operating conditions to validate performance before full production begins, providing you with detailed performance data and reducing the risk of field failures.
Applications Across Key Industries
Ouketech’s high-performance wiring solutions are engineered to meet the specific regulatory and performance requirements of diverse industries, with customized designs optimized for each sector’s unique operating challenges.
Our IATF 16949 certified overmolded cables are designed to withstand the extreme vibration, temperature fluctuations, and chemical exposure present in vehicle environments. We produce custom assemblies for ADAS sensors, infotainment systems, battery management systems, and powertrain components, with specialized high-voltage shielding options to support electric and hybrid vehicle applications. All automotive assemblies pass rigorous USCAR-2 performance testing to ensure 15+ year service life in on-road and off-road vehicles.

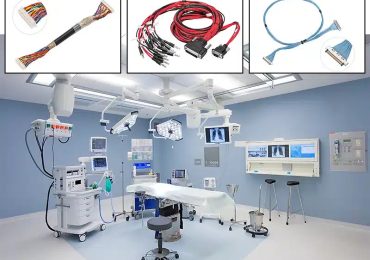

For medical device manufacturers, our ISO 13485 compliant overmolded cables use biocompatible, sterilization-resistant materials that withstand repeated autoclaving, ETO sterilization, and disinfectant exposure without degradation. We produce assemblies for surgical equipment, patient monitors, diagnostic imaging systems, and portable medical devices, with all medical products manufactured in controlled cleanroom environments to ensure compliance with FDA and EU medical device regulations.
Our mission-critical overmolded assemblies for aerospace and defense meet MIL-STD-810 environmental performance standards and are designed to withstand extreme altitude, temperature shock, and high-vibration conditions. We produce lightweight, high-reliability assemblies for avionics systems, ground military equipment, and satellite communications, with options for radiation-resistant materials and tamper-evident overmolding to support secure applications. All aerospace products undergo enhanced testing to meet the strictest reliability requirements for mission-critical systems.
Dynamic robotics and industrial automation applications demand cables that can maintain performance through millions of flex cycles. Our industrial cable solutions for robotics feature highly flexible conductors, abrasion-resistant overmold materials, and optimized strain relief to support continuous motion in robotic arms, automated guided vehicles (AGVs), and factory automation systems. We offer specialized drag-chain rated designs that withstand over 10 million flex cycles without performance degradation, making them ideal for high-cycle automation environments.
Renewable Energy and Industrial Infrastructure
Our rugged overmolded cables support solar panel installations, wind turbine systems, and industrial power distribution applications, with UV-resistant materials and high-current carrying capacity to maximize energy efficiency. We offer corrosion-resistant designs for offshore wind and marine applications, with IP68 sealing that ensures reliable performance even after prolonged submersion in saltwater. Our industrial assemblies also support oil and gas exploration, mining operations, and heavy equipment applications, with material options that resist exposure to harsh chemicals and fuels.
Consumer Electronics and Communications
We produce compact, high-performance overmolded cables for consumer electronics and communications applications, including Ethernet cables, USB assemblies, audio/visual cables, and telecommunications interconnects. Our consumer electronics assemblies feature durable, aesthetically pleasing overmolds that can be customized with brand colors and logos, with compliance with global consumer product safety standards including CE, FCC, and RoHS.
Why Choose Ouketech as Your Overmolded Cable Assembly Partner
Ouketech has established itself as a trusted provider of OEM/ODM cable assemblies for clients across 80+ countries, with a 99.7% on-time delivery rate and 98% customer retention rate. Our end-to-end capabilities cover every stage of the product lifecycle, from initial design and prototyping through full-scale mass production and post-sales support.
Our in-house engineering team brings 15+ years of specialized overmolding experience to every project, providing design for manufacturing (DFM) analysis to optimize your design for performance, cost, and scalability. We can work from your existing drawings, CAD files, or even basic functional requirements to develop a fully optimized custom solution. Our engineering team also provides material selection guidance, regulatory compliance support, and failure analysis services to help you resolve any connectivity challenges.
We understand the importance of speed in product development. Our rapid prototyping service delivers functional overmolded samples in as little as 7 days, allowing you to test and validate designs quickly before full production. For production orders, our scalable manufacturing capacity supports order quantities ranging from 10-unit prototype runs to 100,000+ unit mass production, with standard lead times of 2–4 weeks and expedited options available for urgent projects to keep your development schedules on track.
We stand behind the quality of our overmolded cable assemblies with a 3-year warranty against defects in materials and workmanship, and a lifetime of technical support for all our products. Our dedicated account management team provides ongoing support throughout the product lifecycle, from design consultation to post-delivery troubleshooting, ensuring your connectivity solutions perform as expected for their entire service life. We also offer flexible order management options including blanket orders, scheduled deliveries, and inventory consignment to optimize your supply chain and reduce administrative overhead.
Request Your Custom Overmolded Cable Solution
Contact our sales team today to discuss your overmolded cable requirements and receive a free, no-obligation quote within 24 hours. We also offer complimentary design consultation and prototype sampling support to help you develop the optimal connectivity solution for your application. Whether you need a small prototype run for product development or high-volume production for a full product launch, Ouketech has the expertise, capabilities, and commitment to quality to deliver reliable, high-performance overmolded cable assemblies that meet your exact needs.
Overmolded Cable Assemblies FAQ
What is an overmolded cable assembly, and how does it differ from traditional cable assemblies?
An overmolded cable assembly is a fully integrated connectivity solution where the cable and connector junction is encapsulated with a molten thermoplastic or thermoset material, creating a single, sealed protective unit. Unlike traditional cable assemblies that rely on separate heat shrink tubing, tape, or rubber boots for protection, overmolded designs fuse the protective layer directly to the cable and connector structure. This integrated construction eliminates multiple points of failure, provides superior environmental sealing, and offers built-in strain relief that outperforms conventional protective methods. Traditional assemblies may degrade faster in harsh conditions, while overmolded versions maintain their integrity even under repeated stress, vibration, and exposure to contaminants.
What are the key benefits of using overmolded cable assemblies?
Overmolded cable assemblies offer a comprehensive range of performance and cost advantages:
- Superior Durability: The continuous molded barrier seals out moisture, dust, chemicals, and abrasives, extending service life by up to 300% compared to conventional assemblies in harsh environments.
- Built-In Strain Relief: Reinforces the cable-connector transition, absorbing bending and pulling forces to prevent conductor damage, even in dynamic applications with constant movement.
- Enhanced Electrical Performance: Reduces signal loss, electromagnetic interference, and short circuit risks by securing internal components in place, ensuring stable connectivity in high-vibration environments.
- Space and Weight Savings: Eliminates the need for external clamps, boots, or hardware, creating a compact, lightweight design ideal for tight enclosures and weight-sensitive applications.
- Customization Options: Can be tailored with specific colors, logos, ergonomic grips, and form factors to support branding, color coding, and easy installation in complex systems.
- Long-Term Cost Savings: Reduces maintenance, repair, and replacement costs over the product lifecycle, while simplifying installation with fewer components to handle.
What industries and applications commonly use overmolded cable assemblies?
Overmolded cable assemblies are essential across industries where reliability and environmental resistance are critical:
- Automotive: Sensor wiring, infotainment systems, lighting, and powertrain components that must withstand vibration, temperature extremes, and chemical exposure.
- Medical Equipment: Patient monitoring devices, surgical tools, and diagnostic equipment requiring biocompatible materials, repeated sterilization resistance, and reliable performance.
- Industrial Automation: Robotics, control panels, factory machinery, and IoT sensors operating in high-vibration, dust, or chemical-exposed environments.
- Telecommunications: Network infrastructure, data centers, and outdoor communication equipment requiring weather resistance and stable signal transmission.
- Oil and Gas: Drilling equipment and processing plant wiring designed to resist extreme pressure, temperature fluctuations, and corrosive chemicals.
- Renewable Energy: Solar panel arrays, wind turbine systems, and energy storage infrastructure requiring long-term outdoor durability.
- Consumer Electronics: Mobile device chargers, audio/visual cables, and home appliance wiring needing robust performance with daily use.
What materials are commonly used for overmolding, and how do I choose the right one?
Material selection depends on your application’s specific environmental, mechanical, and regulatory requirements. The most common overmolding materials include:
- PVC (Polyvinyl Chloride): Cost-effective, versatile, and available in multiple durometers. Ideal for general-purpose applications, consumer electronics, and indoor use. Offers good abrasion resistance and electrical insulation.
- TPE (Thermoplastic Elastomer): Flexible, rubber-like material with excellent impact resistance and low-temperature performance. Perfect for applications requiring repeated bending, such as medical devices and portable electronics.
- TPU (Thermoplastic Polyurethane): High-performance material with exceptional abrasion, oil, and chemical resistance. Suitable for heavy-duty industrial applications, automotive components, and outdoor use.
- Nylon: High-strength, heat-resistant material ideal for high-temperature industrial environments and applications requiring structural rigidity.
- Silicone: Biocompatible, temperature-resistant material perfect for medical devices, food processing equipment, and extreme temperature applications ranging from -60°C to 200°C.
When selecting materials, consider factors like operating temperature range, chemical exposure, mechanical stress requirements, regulatory compliance (UL, RoHS, IPC/WHMA-A-620), and desired flexibility. Our engineering team can help you select the optimal material combination for your specific application.
What is the overmolding manufacturing process?
The overmolding process follows a precise, quality-controlled workflow to ensure consistent performance:
- Design and Engineering: Our team works with your specifications to design the overmold form, select appropriate materials, and create precision tooling tailored to your application requirements. We validate designs through DFMEA (Design Failure Mode and Effects Analysis) to identify and mitigate potential issues before production.
- Cable Preparation: Cables are cut to exact lengths, stripped, and conductors are terminated to connectors through crimping, soldering, or insulation displacement connections. Each termination undergoes initial electrical testing to ensure continuity and proper connection.
- Mold Loading: The fully terminated cable assembly is precisely positioned in the mold cavity, ensuring proper alignment of all components to prevent defects.
- Injection Molding: Molten overmold material is injected into the mold cavity under high pressure, completely encapsulating the cable-connector junction. We precisely control temperature, pressure, and injection speed to ensure consistent material flow and complete cavity filling.
- Cooling and Curing: The material is allowed to cool and solidify in the mold, forming a permanent, integrated protective layer. Cooling time is optimized based on material type and wall thickness to prevent shrinkage or warpage.
- Post-Molding Finishing: Assemblies are removed from the mold, excess flash is trimmed, and any required secondary operations (laser marking, labeling, or additional testing) are performed.
- Quality Control Testing: Every assembly undergoes 100% electrical testing for continuity, shorts, and insulation resistance, along with visual inspection and mechanical pull testing to ensure compliance with specifications.
Can overmolded cable assemblies be customized for specific requirements?
Absolutely. Ouketech specializes in fully customized overmolded cable solutions tailored to your exact needs. Customization options include:
- Custom connector types (modular, PCB, circular, coaxial, HDMI, USB, and specialty industrial connectors)
- Custom mold shapes, including angled exits (45°, 90°, 180°) and ergonomic grips for easier handling
- Color matching for branding, color coding, or safety identification requirements
- Embedded logos, part numbers, or serial numbers through laser marking or molded-in features
- Specialized material formulations for unique environmental requirements (extreme temperatures, chemical resistance, UV stability)
- Integrated shielding for high EMI/RFI environments requiring maximum signal integrity
- Hybrid constructions combining power, signal, and data transmission in a single assembly
Our engineering team can work from your existing drawings, or collaborate with you to develop a completely new design optimized for performance, manufacturability, and cost efficiency.
What are the lead times for custom overmolded cable assemblies?
Lead times vary based on project complexity, tooling requirements, and order volume:
- Prototyping: 2-4 weeks for custom prototype development, including tooling fabrication, first article production, and testing. Rapid prototyping options are available for urgent projects, with lead times as short as 1 week for simple designs.
- Production: 3-6 weeks for standard production runs after prototype approval, depending on order size and material availability. We maintain strategic inventory of common connectors and materials to minimize lead times for repeat orders.
- Expedited Services: We offer expedited production options for critical projects, with lead times reduced by up to 50% for an additional premium. Our team works closely with customers to prioritize urgent orders and meet tight project deadlines.
For existing designs with already fabricated tooling, repeat order lead times are typically 1-2 weeks for standard volumes. We also offer kanban and blanket order programs for customers with ongoing requirements, ensuring inventory availability and consistent lead times.
Are there minimum order quantities (MOQs) for custom overmolded cable assemblies?
Ouketech offers flexible order quantities to accommodate both prototype and production requirements:
- Prototyping: No minimum order quantity for prototype runs, with options for as few as 1-10 units for design validation and testing. This allows you to test and refine your design before committing to full production.
- Production: Standard production MOQs start at 100 units for simple designs with common tooling. For custom tooling requiring significant upfront investment, we work with customers to develop volume-based pricing structures that amortize tooling costs over the production lifecycle.
- Low Volume Production: We offer specialized low-volume production options for niche applications, custom equipment, and aftermarket support, with no arbitrary minimums that force you to purchase more units than you need.
Tooling costs are typically one-time charges for custom designs, though we may waive tooling fees for high-volume production commitments. Our sales team can provide detailed pricing and MOQ information based on your specific design requirements and projected order volumes.
How do I ensure my overmolded cable assembly design is optimized for manufacturability?
Optimizing your design for manufacturability (DFM) reduces production costs, improves quality, and shortens lead times. Key design considerations include:
- Uniform Wall Thickness: Maintain consistent wall thickness in the overmold design to prevent uneven cooling, shrinkage, and warpage. Avoid abrupt thickness transitions that can create stress concentrations or molding defects.
- Material Compatibility: Ensure the overmold material is chemically compatible with the cable jacket and connector materials to ensure proper adhesion and prevent delamination or chemical reactions over time.
- Draft Angles: Include appropriate draft angles (typically 1-3° per side) in the mold design to facilitate easy demolding without damaging the finished part.
- Gate Location: Strategically position the injection gate to optimize material flow, minimize weld lines, and ensure complete filling of the mold cavity. Avoid gate locations in high-stress areas or cosmetic surfaces.
- Shrinkage Allowance: Account for material-specific shrinkage during the cooling process when designing molds, typically ranging from 0.5% to 2% depending on the material type and wall thickness.
- Testing Requirements: Incorporate design features that facilitate electrical and mechanical testing during production, such as accessible test points or standardized connector interfaces.
Our engineering team provides complimentary DFM analysis for all custom designs, identifying potential manufacturing challenges and recommending design improvements to optimize performance, reduce costs, and ensure reliable production. We also offer prototyping services to validate designs before full production, minimizing risk and ensuring your final product meets all performance requirements.
