I pulled an old desktop out of storage last month. Works fine. Core 2 Duo, 4 gigs of RAM, runs Linux like a champ. One problem: the only video output is VGA. My monitor? HDMI only.
If you’ve been in the same spot—old laptop, legacy PC, dusty projector—you already know the frustration. VGA and HDMI don’t speak the same language. One’s analog, the other’s digital. You can’t just grab a cable and call it a day.
Here’s what actually works, what doesn’t, and how to avoid spending money on junk that’ll end up in a drawer.
Why You Can’t Just Plug a VGA Cable Into an HDMI Port
VGA (Video Graphics Array) showed up in 1987 with the IBM PS/2. It’s a 15-pin connector—three rows of five—usually blue, always with those little thumbscrews on the sides. It pushes an analog signal: red, green, and blue channels, plus sync signals that tell the monitor when to start a new line or frame.
HDMI (High-Definition Multimedia Interface) arrived in 2002, cooked up by Hitachi, Panasonic, Philips, Sony, and a few others. It’s all digital. Pixels as data packets. And it carries audio on the same cable, which VGA never did.
The core problem: analog and digital are fundamentally different beasts. Analog is a continuous voltage wave. Digital is 0s and 1s. To bridge them, you need a chip that samples the analog signal, digitizes it, and packages it into an HDMI-compatible data stream. A passive cable with VGA on one end and HDMI on the other? Doesn’t exist in any useful form. If you see one for sale, it’s either mislabeled or it’s meant for some proprietary system that happens to use those connectors.
| Feature | VGA | HDMI |
|---|---|---|
| Introduced | 1987 | 2002 |
| Signal Type | Analog | Digital |
| Max Resolution (typical) | 2048×1536 (theoretical); 1920×1080 realistic | 4K, 8K (version-dependent) |
| Audio | No | Yes (up to 32 channels) |
| Connector | 15-pin D-sub (DE-15) | 19-pin Type A (standard) |
| Hot-pluggable | No (technically) | Yes |
Three Ways to Convert VGA to HDMI (Ranked)
Every VGA-to-HDMI solution involves active conversion. The question is what form factor fits your situation. Here’s how they stack up.
1. Converter Box — The Reliable Choice
A dedicated converter box is a small external unit with VGA input on one side and HDMI output on the other. Most include a 3.5mm audio input jack and a USB port for power. Inside is a proper scaler chip that handles the analog-to-digital conversion, resolution scaling, and audio embedding.
This is what I’d recommend for any fixed setup—desktop to monitor, conference room, classroom. The conversion quality is consistently better because the box has its own power supply and isn’t cramming everything into a cable head.
Downside: it’s a box. You need space for it, and it’s the most expensive option (usually $15–$40).
2. Converter Cable — Convenient, but Hit or Miss
These look like a regular cable with VGA on one end and HDMI on the other, but there’s a small chip buried in the HDMI connector head. They pull power from the VGA port’s 5V pin or from a short USB pigtail.
The good: one cable, no extra box, easy to toss in a laptop bag. The bad: quality varies wildly. Some work fine at 1080p. Others produce a fuzzy image or just don’t sync. The chip inside is tiny and can’t dissipate heat well, so long sessions can cause signal degradation.
If you go this route, buy from a brand that has actual reviews—not just the Amazon five-star “works great!” kind. Look for mentions of specific resolutions and long-term use.
3. Adapter Dongle — Best for Laptops on the Go
A compact dongle that plugs directly into the VGA port, with an HDMI port on the other end for your own cable. Usually USB-powered. These are the smallest option and work well for presentations where you’re moving between rooms.
The catch: the weight of an HDMI cable hanging off a VGA dongle can put stress on the port. Not a dealbreaker, but something to be aware of if you’re connecting and disconnecting frequently.
| Solution | Stability | Audio Support | Portability | Price Range | Best For |
|---|---|---|---|---|---|
| Converter Box | High | Yes (3.5mm in) | Low | $15–$40 | Fixed setups, offices |
| Converter Cable | Medium | Sometimes | High | $8–$20 | Casual use, travel |
| Adapter Dongle | Medium-High | Usually | High | $10–$25 | Laptops, presentations |
5 Things to Check Before You Buy
I’ve bought maybe a dozen of these over the years—for myself, for clients, for random office setups. Here’s what separates the keepers from the returns.
1. Resolution support. Most converters top out at 1920×1080 @ 60Hz. If you need 1920×1200 or anything 4K, read the specs carefully. True 4K VGA-to-HDMI conversion is rare and expensive because you’re asking a lot from an analog source that was never designed for that bandwidth.
2. Audio input. VGA doesn’t carry sound. Period. If you need audio through the HDMI output, the converter must have a 3.5mm audio input jack. You’ll run a separate cable from your PC’s headphone port into the converter, and the chip will embed that audio into the HDMI stream. No 3.5mm jack = video only.
3. Power source. Some cables try to draw power from the VGA port’s pin 9 (which carries 5V in some implementations). This is unreliable—not every VGA port supplies that voltage. Converters with a dedicated USB power cable are more stable. Budget an extra USB port or a phone charger.
4. Build quality. Look at the cable thickness and connector housing. A thin, unshielded VGA cable feeding into a converter means the analog signal is already degraded before conversion happens. The custom cable assemblies used in professional AV setups typically have double shielding and gold-plated contacts for exactly this reason—keeping the signal clean from source to destination.
5. Return policy. Seriously. Compatibility gremlins are real. A converter that works perfectly with a Dell Optiplex might not sync with an old ThinkPad. Buy from somewhere with a no-hassle return window.
Step-by-Step: Hooking It Up
Once you’ve got the right gear, the actual connection takes about two minutes.
Step 1: Power everything off. Not strictly required for HDMI, but good practice with VGA equipment.
Step 2: Plug the VGA cable from your source device into the converter’s VGA input. Tighten the thumbscrews if present.
Step 3: Connect an HDMI cable from the converter’s output to your display.
Step 4: If you need audio, run a 3.5mm cable from your source’s headphone/line-out jack to the converter’s audio input.
Step 5: Connect USB power to the converter if required.
Step 6: Power on the display first, then the source device. Select the correct HDMI input on the display.
If the image doesn’t appear, don’t panic. Try the steps in the next section.
When Things Go Wrong: Troubleshooting
No picture at all
First, verify the converter is getting power. That USB cable matters—plug it into a wall adapter, not the source device’s USB port (some ports don’t supply power when the device is booting). Second, cycle through the display’s HDMI inputs. Third, try a different HDMI cable—yes, cables do fail.
If you’re connecting to a TV, some older TVs are picky about HDMI signals from converters. Try a computer monitor to rule out the display.
Picture but no sound
Remember: VGA is video-only. Check three things: (1) the 3.5mm audio cable is plugged into the correct port on your source (headphone out, not mic in), (2) the converter actually supports audio input (not all do), (3) your source device’s audio output is set to the headphone jack, not HDMI or some other output.
On Windows, right-click the speaker icon → Sounds → Playback tab, and make sure “Speakers” (the 3.5mm output) is set as default.
Blurry or stretched image
This usually means a resolution mismatch. The converter is outputting one resolution while your display expects another. Go into your source device’s display settings and try 1920×1080 at 60Hz first. If that doesn’t work, step down to 1280×720.
Also worth checking: is your VGA cable in good shape? A kinked or poorly shielded VGA cable introduces analog noise that gets baked into the digital output. This is where cable quality actually matters—unlike HDMI where the signal either works or doesn’t, a bad VGA cable can produce a “sort of works but looks terrible” result.
Can I go the other direction? HDMI to VGA?
Different beast entirely. HDMI-to-VGA conversion requires a digital-to-analog converter (DAC), and it’s a separate product. A VGA-to-HDMI converter won’t work in reverse. If you need to connect a modern HDMI source to an old VGA monitor, you need an active HDMI-to-VGA adapter—they’re cheap and widely available, but make sure you get the right direction.
Quick tip: If you’re building a permanent setup with multiple legacy devices, consider having a professional shop build a custom interface panel. For complex AV installations, custom wiring harnesses can consolidate all your connections into one organized, labeled panel—way cleaner than a nest of adapters and dongles.
The Bottom Line
VGA to HDMI conversion isn’t complicated once you understand the fundamental issue: analog to digital requires active electronics. Get a powered converter box if reliability matters. Get a cable-style converter if you need portability and are willing to test compatibility. Always check audio support before buying if sound matters to you.

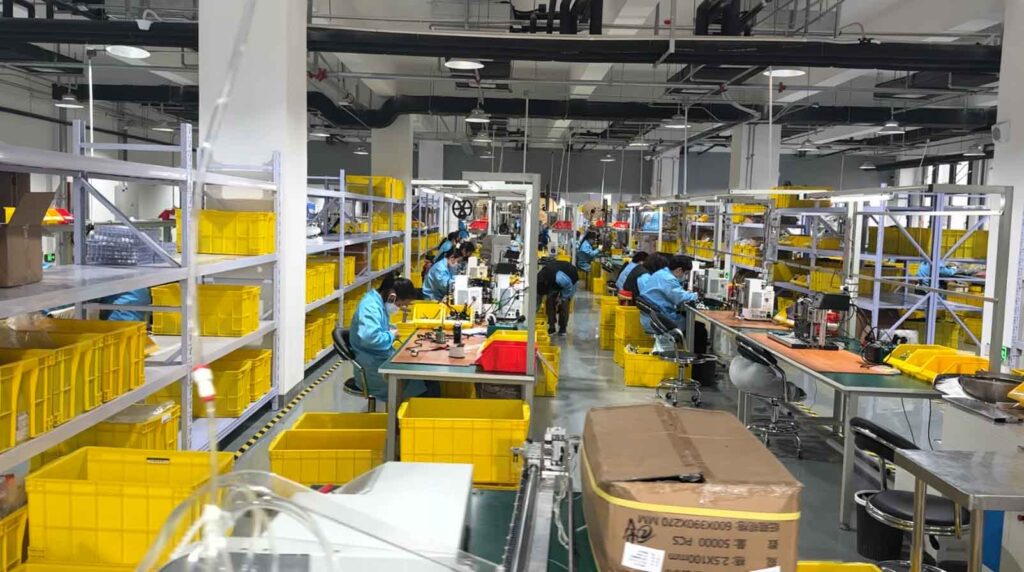

And if you’re dealing with this at scale—outfitting a conference room, building test benches, managing a fleet of mixed-generation equipment—the cabling and connection infrastructure matters as much as the converters themselves. At OUKETECH, we manufacture custom cable assemblies and wiring harnesses for industrial, medical, and commercial applications, with IATF 16949 and ISO 9001 certified production. Whether you need a one-off prototype or production volumes, we build cables that last.
