Organizations still operating IEEE 1394 equipment face a different problem from ordinary device connectivity. A machine-vision camera, laboratory instrument, broadcast archive station, or embedded controller may depend on a specific FireWire port, driver, cable construction, and software release. Changing only one component can interrupt a validated workflow.
This guide helps engineering, maintenance, IT, and procurement teams define a workable connection architecture, specify an industrial FireWire cable assembly, qualify samples, and prepare an RFQ. It covers FireWire 400 and FireWire 800 connections, host-adapter decisions, driver checks, fault isolation, and lifecycle planning for legacy equipment.
Decide Whether to Maintain, Bridge, or Migrate the FireWire System
Start with the business and technical role of the installed equipment. A bridge solution can be appropriate when the device remains serviceable, its application software cannot be replaced quickly, and a controlled workstation can be maintained. Migration should receive priority when the operating system, acquisition software, host controller, or replacement hardware is no longer supportable.
| Project condition | Practical direction | Procurement action |
|---|---|---|
| The equipment is stable and the existing host can be maintained | Preserve the validated architecture | Secure replacement IEEE 1394 cable assemblies and document the approved configuration |
| The device is stable but the host computer must change | Build and qualify a bridge workstation | Validate the host controller, adapter chain, driver, cable, and application as one system |
| Several product variants use different 4-pin, 6-pin, or 9-pin interfaces | Standardize the interface BOM where possible | Request build-to-print cable variants, labeling, and revision control |
| The software or camera interface is end-of-life | Run a controlled migration project | Compare the cost of sustaining the legacy interface with requalification of a newer platform |
| Unplanned downtime has a high operational cost | Maintain a tested spare path | Approve a spare workstation, host card, cable set, and recovery procedure |
Do not qualify a cable or adapter in isolation. The approved configuration should identify the equipment model, host interface, operating system build, driver version, application version, cable part number, cable length, and power arrangement.
Inventory the Existing IEEE 1394 Connection Before Sourcing Parts
A useful FireWire cable RFQ begins with a verified interface inventory. Photographs alone are not enough because similar-looking ports may have different pin counts, power behavior, or protocol requirements.
Record the following information:
- Equipment manufacturer, model, hardware revision, and installed software version
- FireWire standard used by the device: IEEE 1394a or IEEE 1394b
- Device-side connector: 4-pin, 6-pin, or 9-pin
- Host-side connector or expansion interface
- Whether the equipment requires bus power or has a separate power input
- Current cable length, routing, bend points, shielding, and strain-relief arrangement
- Fixed installation, repeated mating, service-loop, or moving-cable conditions
- Nearby motors, drives, power cables, or other potential EMI sources
- Required identification, packaging, documentation, and annual quantity
If the original drawing is unavailable, send the supplier a known-working sample, clear connector photographs, end-to-end pin requirements, and the equipment manuals. A reverse-engineered replacement should still pass electrical and functional approval before production release.
Select the Host Architecture Before Choosing an Adapter
FireWire and USB are different bus architectures. A passive cable that changes the connector shape does not translate IEEE 1394 traffic into USB traffic. A viable connection requires a host controller or an active architecture that the operating system and target device can recognize.
Workstation with an Available PCIe Slot
For a controlled Windows or Linux workstation, an IEEE 1394 host-controller card can provide a direct bus interface. Procurement teams should verify the card chipset, operating-system support, device-driver requirements, available slot, external connector, and any device-specific application restrictions before standardizing the BOM.
This approach is often easier to document and service than a multi-adapter chain. It still requires system-level validation: host-card detection does not prove that the target instrument, camera, or application will operate correctly.
Managed Workstation with Thunderbolt
A Thunderbolt-based adapter path may be possible on some managed workstations, but connector compatibility alone is not approval evidence. Confirm that the computer has Thunderbolt rather than a USB-C-shaped port only, that each adapter is supported, and that the operating-system release still supports the required device class.
Before purchasing an adapter set for multiple stations, qualify one complete chain under the actual workload. Record the adapter part numbers and firmware where applicable so that later replacements do not introduce an uncontrolled change.
Computer Without a Supported Expansion or Bridge Path
If the selected computer has neither a supported host controller nor a validated Thunderbolt path, do not purchase passive “FireWire-to-USB” cables as a substitute. Maintain a dedicated legacy workstation, select an industrial PC with the required expansion capability, or plan migration of the equipment interface.
Specify the Correct Industrial FireWire Cable Assembly
Connector count, data rate, and power requirements must match the installed system.
| Interface | Typical connector | Power consideration | Sourcing note |
|---|---|---|---|
| FireWire 400 / IEEE 1394a | 4-pin | Data only | Confirm external device power and connector orientation |
| FireWire 400 / IEEE 1394a | 6-pin | Includes power contacts | Confirm whether bus power is required and how it is provided |
| FireWire 800 / IEEE 1394b | 9-pin | Supports powered configurations | Confirm the host/device combination and any 1394a backward-compatibility requirement |

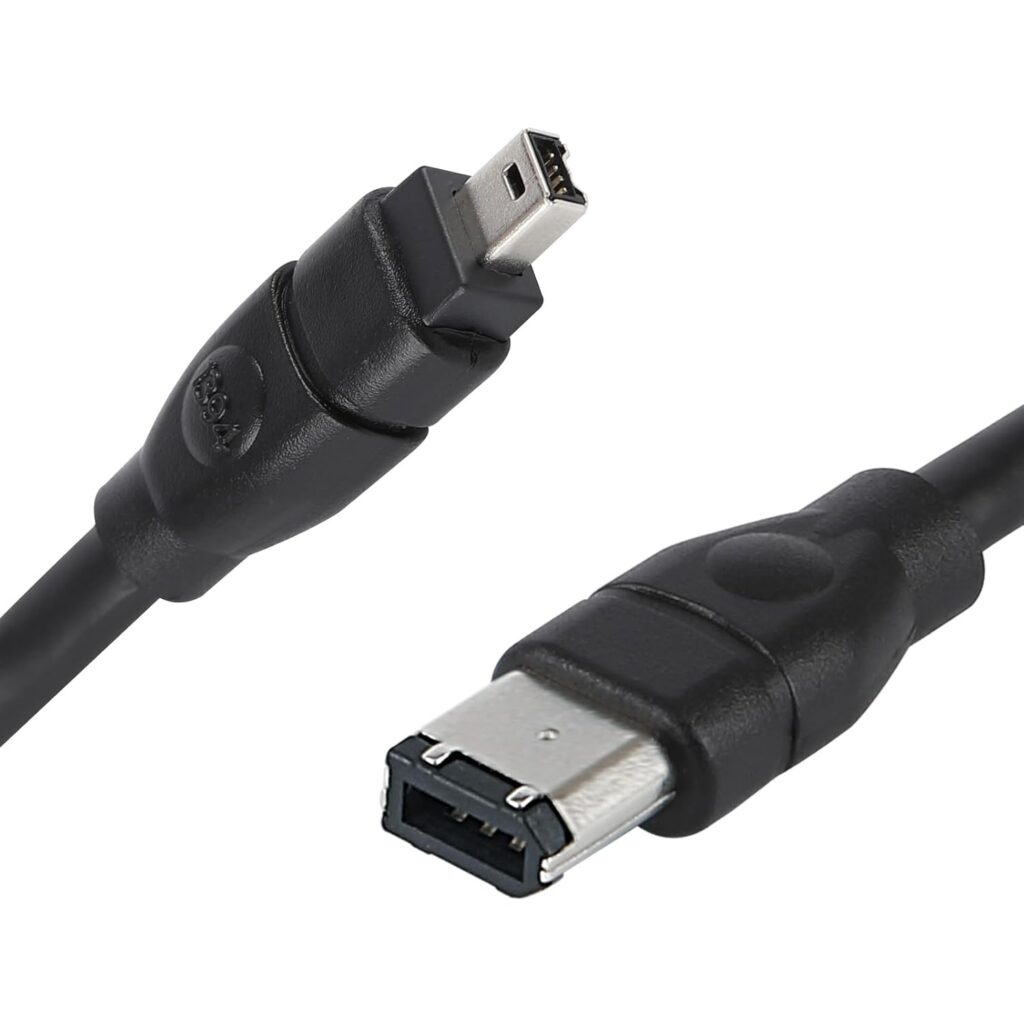

| Mixed 1394a-to-1394b system | 4-to-9 or 6-to-9 pin | Depends on the end connectors | Supply an approved pinout and validate the complete equipment path |
For a custom FireWire cable assembly, the drawing or specification should define:
- Connector types, plug orientation, contact plating, and retention requirements
- Finished cable length and tolerance
- Cable construction and shielding required for the installation environment
- Jacket material, color, diameter, and environmental constraints
- Straight, angled, or overmolded connector exits
- Strain-relief geometry and minimum bend expectations
- Pinout, shield termination, and any unused contacts
- Part number, revision, labels, serialization, or lot identification
- Electrical inspection and functional test requirements
- Packaging, storage, and handling requirements
An industrial FireWire cable supplier should quote against this controlled information. Terms such as “high quality” or “heavy duty” are not substitutes for a drawing, acceptance criteria, and an approved sample.
When a Custom or Overmolded FireWire Cable Is Appropriate
A catalog cable can be sufficient for a protected, stationary connection. A custom IEEE 1394 cable assembly becomes more relevant when the equipment requires a non-standard length, controlled routing, part identification, repeated service handling, an angled exit, integration with other conductors, or a connector transition that must fit an existing enclosure.
Overmolding may be considered when the cable-to-connector transition needs defined strain relief or a repeatable mechanical form. Material selection and mold geometry should be based on the actual temperature, chemical, flexibility, sealing, and handling requirements. Do not assign an IP rating or service-life claim unless the finished assembly has been designed and validated to the applicable requirement.
For embedded equipment, an IEEE 1394 branch may also be incorporated into a larger industrial wire harness. The customer drawing should clearly separate power, data, shield, grounding, and mechanical requirements so that the complete assembly can be reviewed and tested.
Validate Drivers and Application Software as Part of the System
Driver support is application-specific and may change between software releases. Microsoft continues to document the IEEE 1394 bus driver interface, but that does not establish compatibility for every legacy device or application. Industrial imaging platforms can impose additional constraints; for example, NI states that FireWire is not recommended for new applications and that FireWire camera support depends on older NI-IMAQdx releases and IIDC/DCAM compliance.
Create a software compatibility record that includes:
- Operating system edition, build, and update policy
- IEEE 1394 host-controller model and driver
- Device driver and configuration utility
- Acquisition, control, or archive application version
- Security policy, user permissions, and power-management settings
- Test file, acquisition sequence, or equipment cycle used for acceptance
Freeze the approved configuration where operationally justified. Before an operating-system, driver, or application update is deployed, repeat the connection and workload tests on a non-production station.
Qualify a FireWire Cable Sample Before Production Release
Related OUKETECH resources: OEM cable manufacturer.
Sample approval should reproduce the real installation rather than a bench-only continuity check. A practical qualification plan may include:
- Visual inspection against the drawing and approved workmanship criteria
- Connector fit, orientation, retention, and clearance verification
- Pinout, continuity, short-circuit, and shield-connection checks according to the agreed test plan
- Device enumeration after cold start and restart
- Sustained data transfer or image acquisition using the production workload
- Reconnect and repeated-mating checks when the maintenance process requires them
- Operation beside representative equipment and cable routing
- Fault recovery after a controlled disconnect or power interruption
- Confirmation of labels, revision, packaging, and receiving-inspection method
Record the approved sample and drawing revision. If the buyer later changes the connector source, cable length, jacket, shielding, overmold, or pinout, treat the change through the agreed approval process rather than assuming equivalence.
Troubleshoot FireWire Failures by Layer
| Symptom | Check first | Procurement or engineering response |
|---|---|---|
| Host controller is not detected | PCIe slot, adapter support, firmware, and operating-system recognition | Revalidate the host architecture before replacing cables |
| Controller is detected but the device is absent | Device power, connector type, cable pinout, and device driver | Compare with the approved golden configuration and known-good cable |
| Device enumerates but the application cannot acquire data | Application version, device class, driver assignment, and permissions | Restore the approved software stack or contact the equipment vendor |
| Intermittent transfer or dropped frames | Cable routing, connector retention, shielding, length, grounding, and power management | Test a controlled-length sample in the actual installation |
| Only some stations fail | Hardware and software revision differences | Build a station-by-station configuration matrix and standardize the BOM |
| Replacement lot behaves differently | Uncontrolled component or process change | Quarantine the lot and compare it with the approved sample and inspection records |
Troubleshooting should change one variable at a time. Replacing the host card, driver, adapter chain, and cable simultaneously makes the root cause difficult to identify and weakens future change control.
Evaluate an OEM IEEE 1394 Cable Supplier
For prototype, maintenance, high-mix, or volume requirements, evaluate the supplier against the project rather than a generic capability list. Useful questions include:
- Can the supplier work from a controlled drawing, BOM, pinout, or physical sample?
- Can it support 4-pin, 6-pin, 9-pin, mixed-end, shielded, and overmolded configurations relevant to the project?
- How are connector and cable-source changes communicated and approved?
- Which electrical and dimensional inspections can be performed against the buyer’s specification?
- What documents can accompany samples and production lots?
- How are revisions, labels, packaging, and lot identification controlled?
- Can the supplier support prototype samples, small-batch service requirements, high-mix schedules, and planned volume production?
- What are the quotation assumptions for MOQ, tooling, sample approval, lead time, and repeat orders?
OUKETECH’s custom cable assembly and overmolded cable assembly resources provide additional context for projects that need a build-to-print cable, strain-relief design, or integration into a broader equipment harness.
Prepare a Complete IEEE 1394 Cable RFQ
To receive a useful quotation, send:
- Drawing, pinout, BOM, equipment-interface specification, or known-working sample
- Required FireWire connector combination and cable length
- Annual quantity, initial order quantity, and expected order pattern
- Prototype or first-article quantity
- Installation environment and mechanical constraints
- Shielding, jacket, overmold, label, and packaging requirements
- Applicable inspection, test, and documentation requirements
- Target sample date and production delivery schedule
- Delivery location and any approved-source restrictions
MOQ, tooling, sample cost, and lead time depend on the design, materials, test scope, and quantity. They should be confirmed in the project quotation rather than stated as fixed values on a general guide.
Frequently Asked Questions for Engineering and Procurement Teams
Can a passive USB-C-to-FireWire cable replace an IEEE 1394 host controller?
No. Changing the connector does not translate the bus protocol. The system needs a supported IEEE 1394 host controller or a validated active architecture.
Can an obsolete FireWire cable be reproduced without the original drawing?
A supplier may be able to review a known-working sample, connector photographs, equipment manuals, and a verified pinout. The replacement still needs an approved drawing and functional qualification before production release.
What information is needed for a custom 6-pin or 9-pin FireWire cable quotation?
Provide the connector combination, pinout, cable length, power requirement, shielding and jacket requirements, strain relief, labels, test criteria, sample quantity, annual quantity, and delivery schedule.
Should a buyer approve bulk FireWire cables after a continuity test only?
Continuity is useful but does not validate the complete system. Sample approval should also include connector fit, device enumeration, sustained operation under the intended workload, and any project-specific mechanical or environmental checks.
How should a company manage FireWire equipment that cannot yet be migrated?
Document and freeze a validated hardware/software configuration, maintain approved spares, control changes, and create a migration plan before critical components or software become unavailable.
Build a Controlled FireWire Connection for Your Legacy Equipment
A reliable legacy-equipment connection begins with a defined system architecture and an approved cable specification. OUKETECH can review drawings, pinouts, samples, cable lengths, connector combinations, shielding, overmold, labeling, test requirements, and order quantities for custom IEEE 1394 cable assembly projects.
Send your specification, target application, sample quantity, annual demand, and delivery requirements through the existing page enquiry form for an engineering and quotation review.
